Position： Home>>Product Center>>Conical roller bearing>>Double row tapered roller bearings metric series

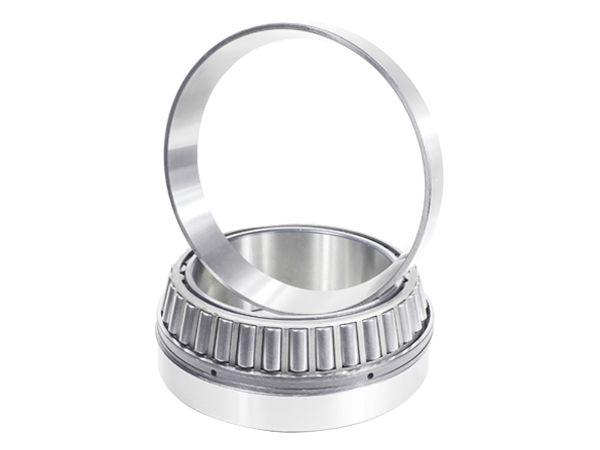

352132

Double Row tapered roller bearing outer ring relative to the Inner Ring Axis angle error can only be between the roller and raceway strong bear. This will result in off-load on the bearing and should be avoided as far as possible.

Hotline：13861477666

Note: Please select the model for enquiry

Product size and parameters

Bearing code	Overall dimension(mm)					Basic load (KN)		Calculation parameters				Reference weight
New	d	D	T	B	C	Cr	Cor	e	Y₁	Y₂	Y₀	kg
352132	160	270	150	66	120	872	1720	0.36	1.9	2.8	1.8	28.2
